- SATA/PATA / 微型固态硬盘 / ADM5S-M 44P/270D
- Standard 44-pin IDE female connector
- Advanced Wear-Leveling and Block Management
- Built-in ATA Secure Erase and S.M.A.R.T. Function
- Intelligent Power Failure Recovery
- Halogen Free

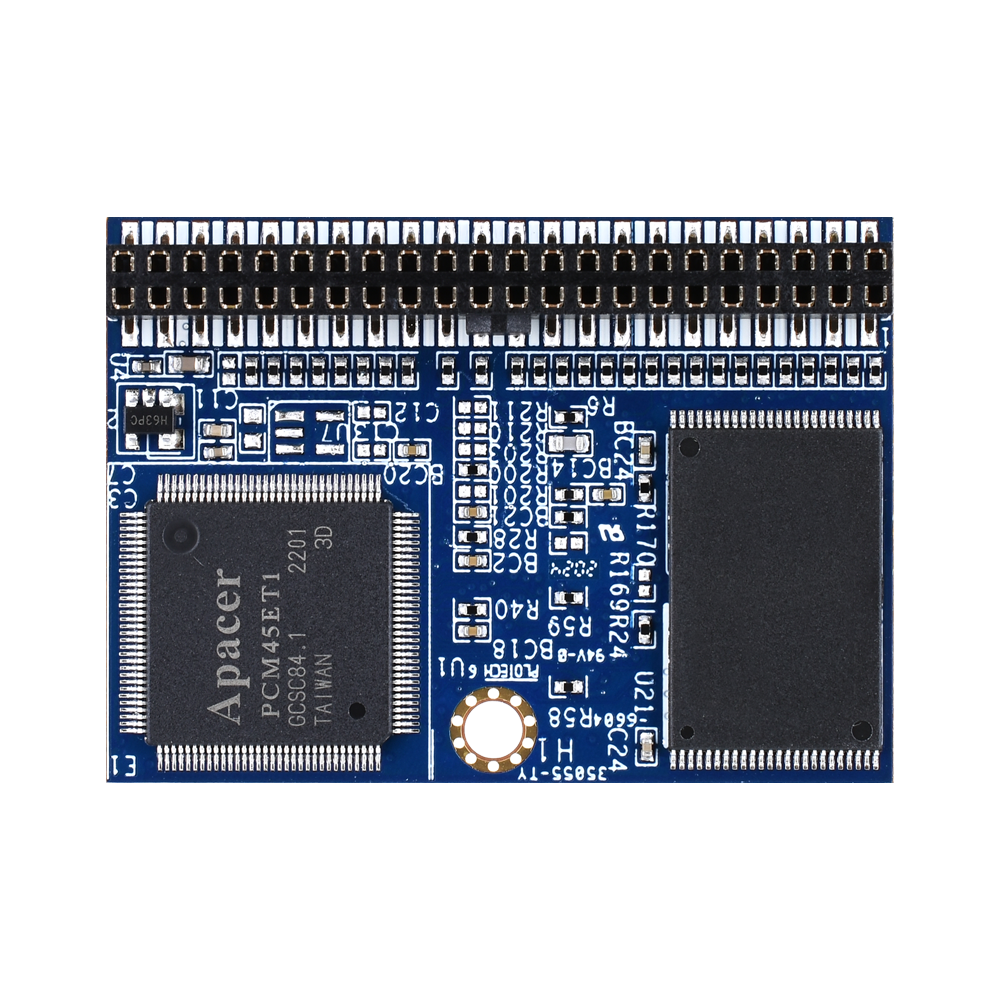

微型固态硬盘
ADM5S-M 44P/270D
产品概述
|
Introduction |
Apacer ATA Disk Module 5S(ADM) MLC complies with 44 PIN IDE (ATA) standard interface in horizontal type or in vertical type, including 270 degree. With high capacity of flash memory supporting, and is suitable for data storage media and code storage device for embedded system, mobile computing devices or other electronic equipments. 100% Compatible with the Standard IDE ATA interface, Apacer ATA Disk Module 5S(ADM) works exactly like a standard hard drive but without any moving part, strongly increasing reliability and improving data access speed performance, without any noise.
产品规格
规格表
-
型号ADM5S-M 44P/270D
-
介面PATA
-
接口44 pin male
-
板型SSD Module
-
操作模式PIO Mode up to 4/ Multiword DMA Mode up to 2/ Ultra DMA Mode up to 6
-
NAND 颗粒MLC
-
容量8GB~128GB
-
读取速度(MB/sec)Up to 100
-
写入速度(MB/sec)Up to 75
-
ECC纠错功能Built-in 72-bit per 1K bytes BCH ECC
-
标准作业温度(°C)0 ~ + 70
-
最高作业温度(°C)-40 ~ + 85
-
放置温度(°C)-40 ~ + 100
-
外壳No
-
硬件写保护No
-
螺丝孔Yes
-
冲击耐力1500G (complied with MIL-STD810)
-
震动耐力15G (complied with MIL-STD810)
-
电压3.3V ± 5% / 5V ± 5%
-
用电量Active mode: 270 mA; Idle mode: 240 mA
-
尺寸 (L x W x H )45.00 x 28.00 x 7.00 mm
-
MTBF (小时)>1,000,000
